DIMJOGGED

• Measures the radius of the selected circle or arc and displays it as a jogged dimension.

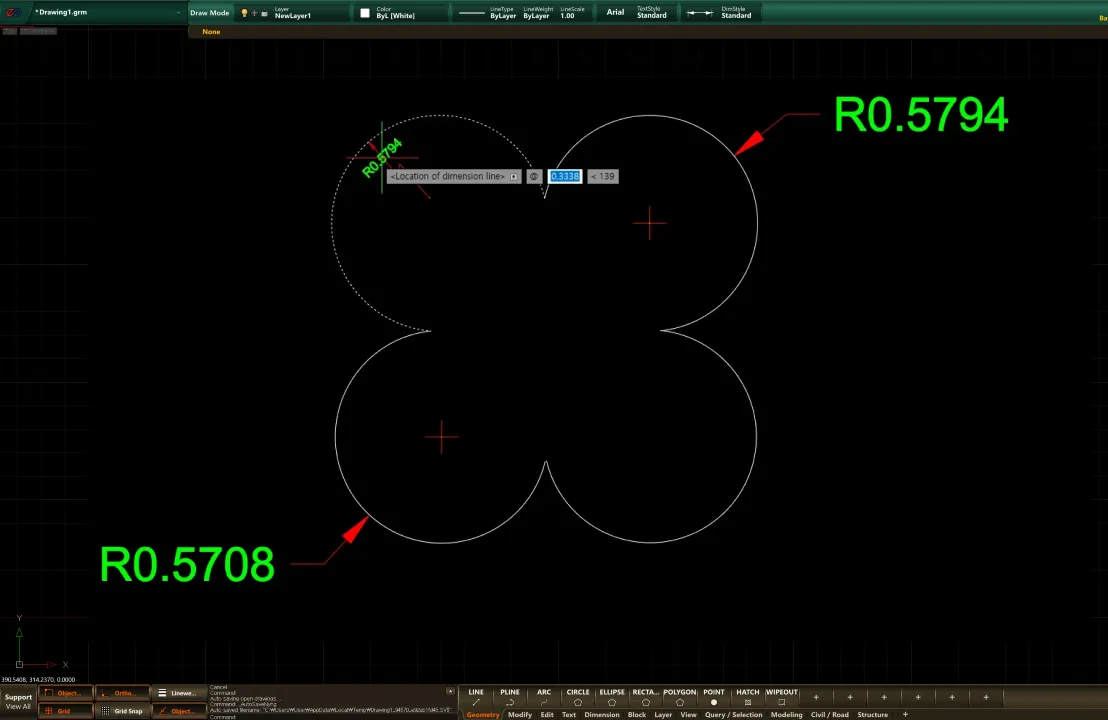

1. Entering a Jogged Radius Dimension Demo Video

1) Run the “DIMJOGGED” command.

2) Select the circle or arc in the drawing whose radius you want to measure.
3) Specify the new center point for the jogged radius dimension.

4) Move the mouse and click at the desired position for the dimension text.
5) Move the mouse and click at the desired angle for the dimension line.

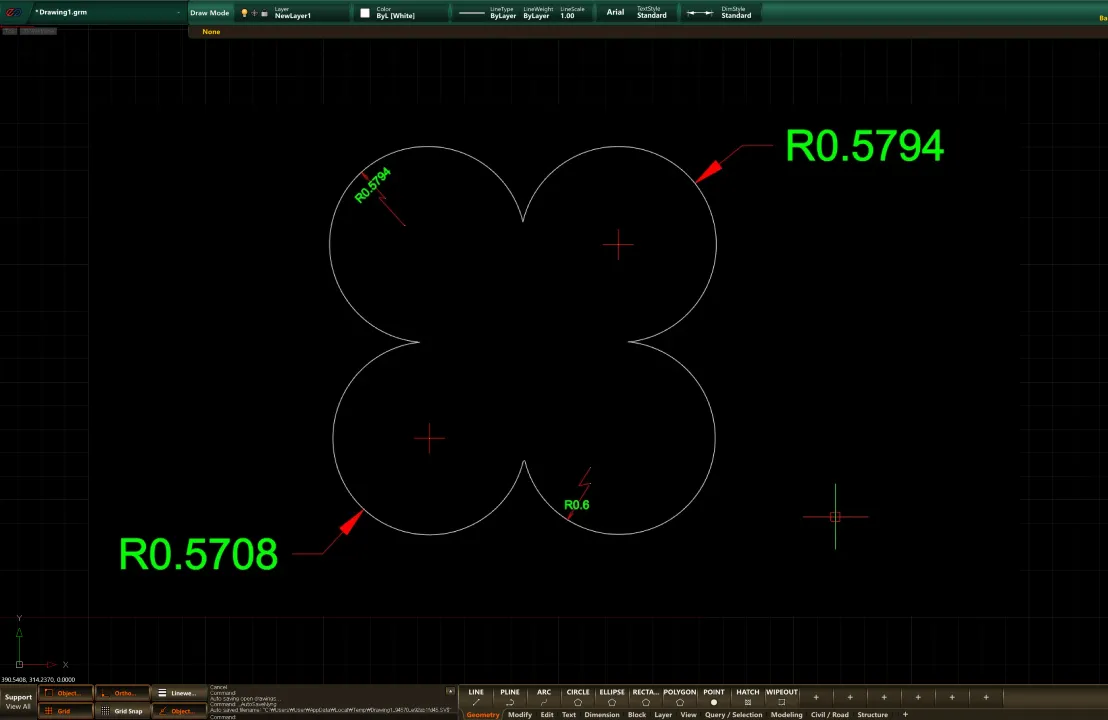

2. Changing the Angle of the Jogged Radius Dimension Text Demo Video

1) Run the “DIMJOGGED” command, then select the circle or arc in the drawing whose radius you want to measure.
2) Click the Angle option and enter an angle value; the dimension text is placed at the specified angle. (The default value is 0 degrees.)

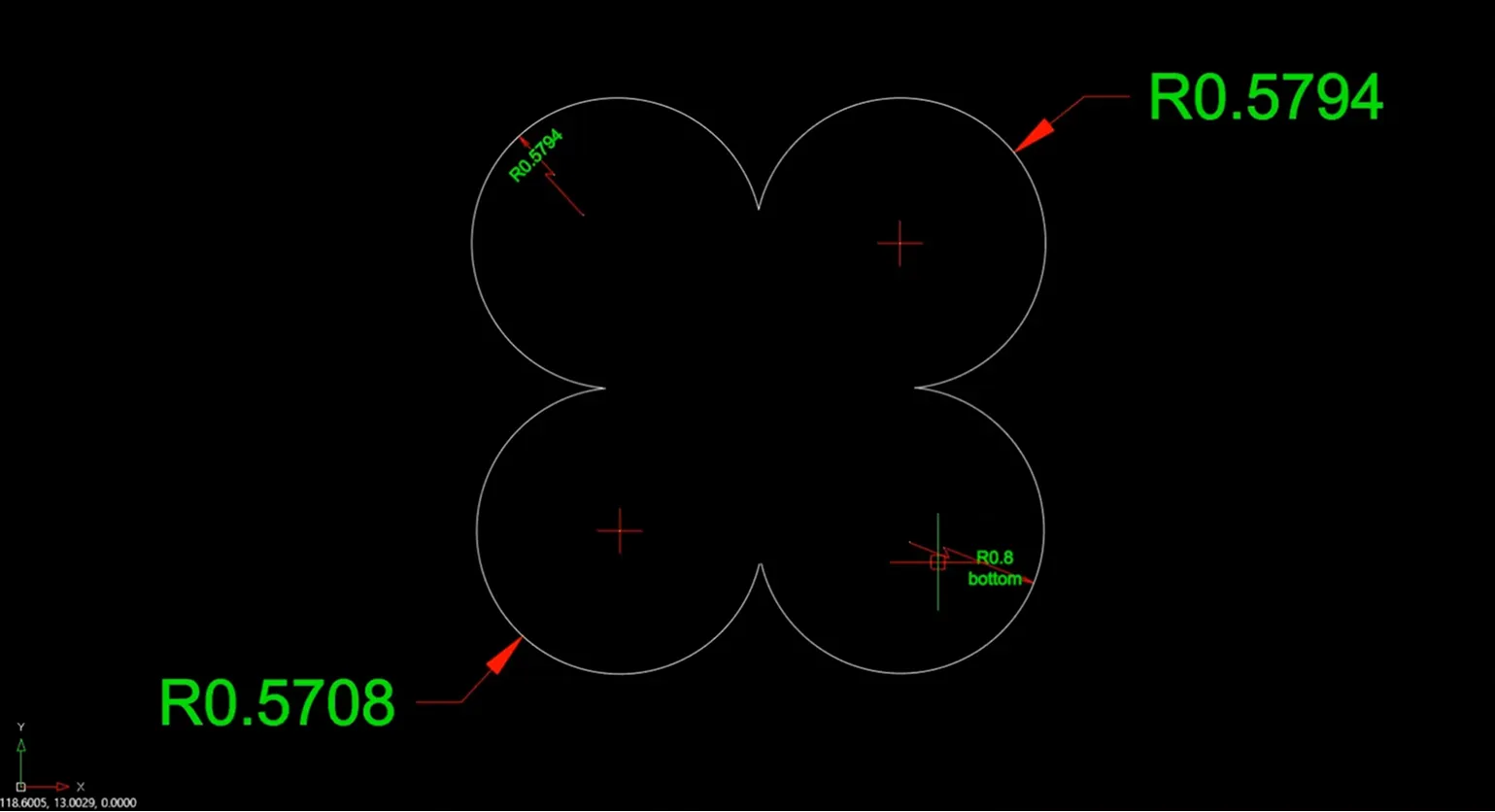

3. Entering the Jogged Radius Dimension Text as Multiline Text Demo Video

1) Run the “DIMJOGGED” command, then select the circle or arc in the drawing whose radius you want to measure.

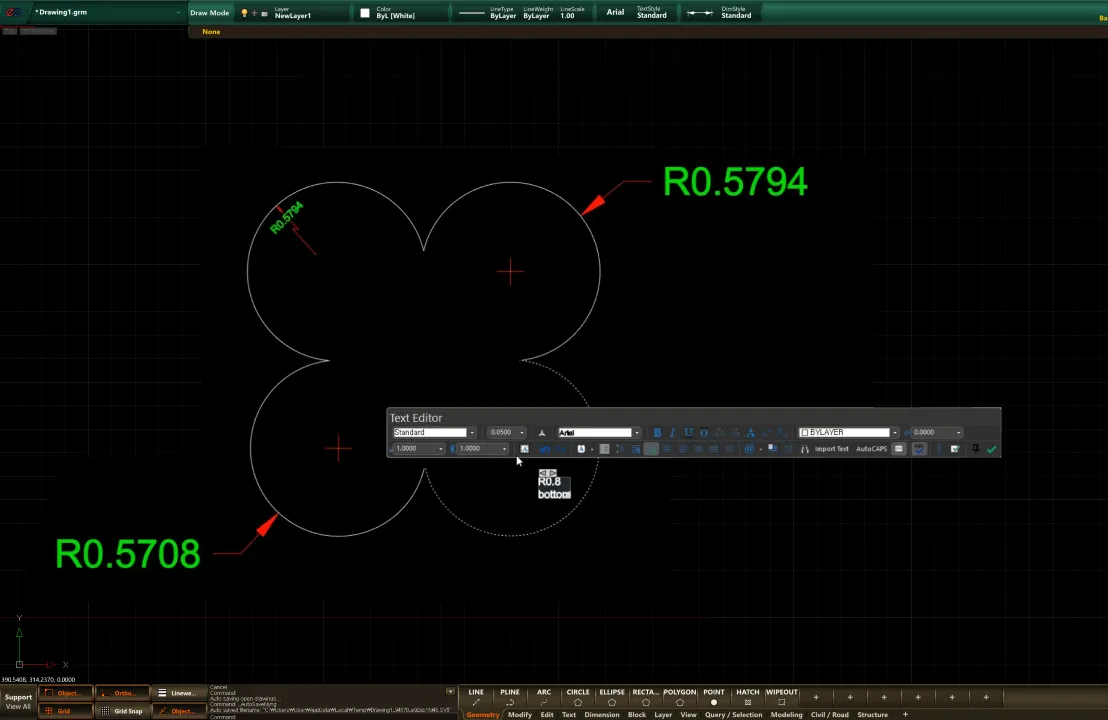

2) Click the Mtext option; the Text Editor toolbar appears and the dimension text enters edit mode, allowing you to enter multiple lines of text.


3) Click the Done button (V) on the Text Editor toolbar, or click an empty area of the drawing, to end editing.

4. Changing the Diameter Dimension Text Demo Video

1) Run the “DIMJOGGED” command, then select the circle or arc in the drawing whose radius you want to measure.
2) Click the Text option and enter the replacement text.

3) Press ENTER, then place the diameter dimension at the desired location in the drawing.
