ELVALUETOTEXT

• A command that automatically creates a Text and Point pair in the drawing.

1. Writing EL Values to an Object Demo Video

1) Type “ELVALUETOTEXT” in the Command Input Window.

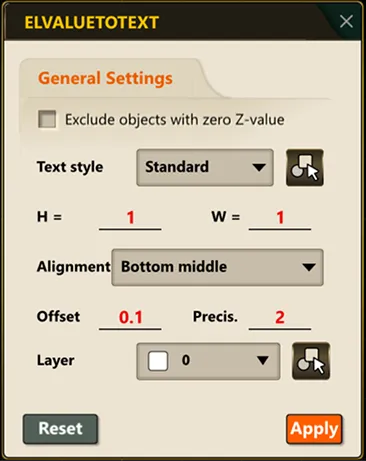

2) Configure the required items in the dialog box.

3) The Z coordinate value of the selected object is automatically read.
4) An EL text is created at that location (or the configured offset location).
