Create and manage attribute blocks where text contents within the block can be changed and used
How to use
- Method 1
- Command Input Window > Command : BLOCK
- Method 2
-
Command
View All > Block >
Create Block > Block Manager
-
- Attribute Block LIST
- List of attribute blocks available for use in the current file
- Composed of attribute block names and descriptions
- Select Attribute Block
- Click to set display status
- Right-click to delete

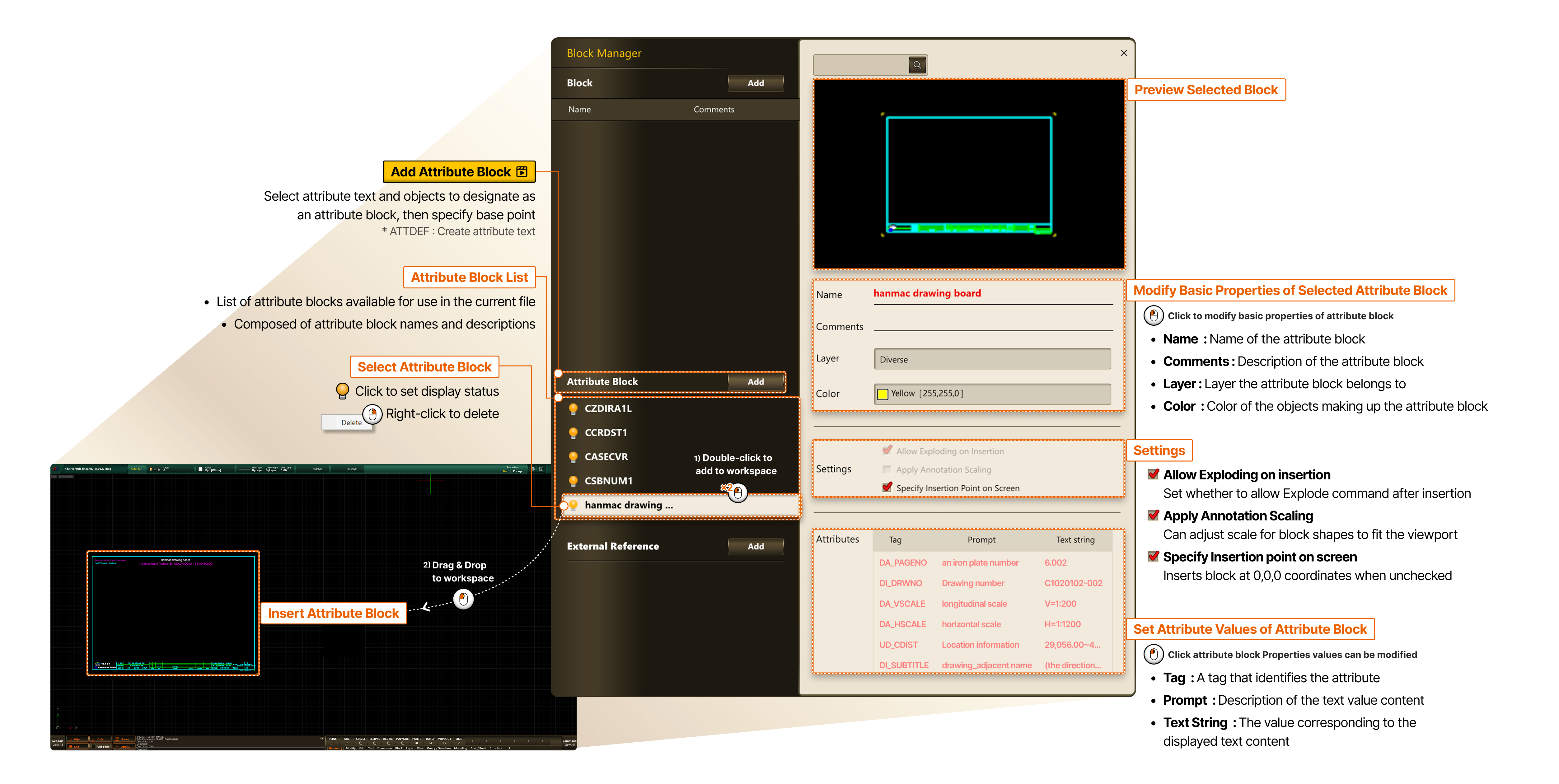

- Insert Attribute Block
- 1) Double-click to add to workspace
- 2) Drag & Drop to workspace
- Preview Selected Block
- Modify Basic Properties of Selected Attribute Block
- Click to modify basic properties of attribute block
- Name : Name of the attribute block
- Comments : Description of the attribute block
- Layer : Layer the attribute block belongs to
- Color : Color of the objects making up the attribute block
- Settings
- Allow Exploding on insertion : Set whether to allow Explode command after insertion
- Apply Annotation Scaling : Can adjust scale for block shapes to fit the viewport
- Specify Insertion point on screen : Inserts block at 0,0,0 coordinates when unchecked
- Set Attribute Values of Attribute Block
- Tag : A tag that identifies the attribute
- Prompt : Description of the text value content
- Text String : The value corresponding to the displayed text content
- Click to modify attribute values of the attribute block
