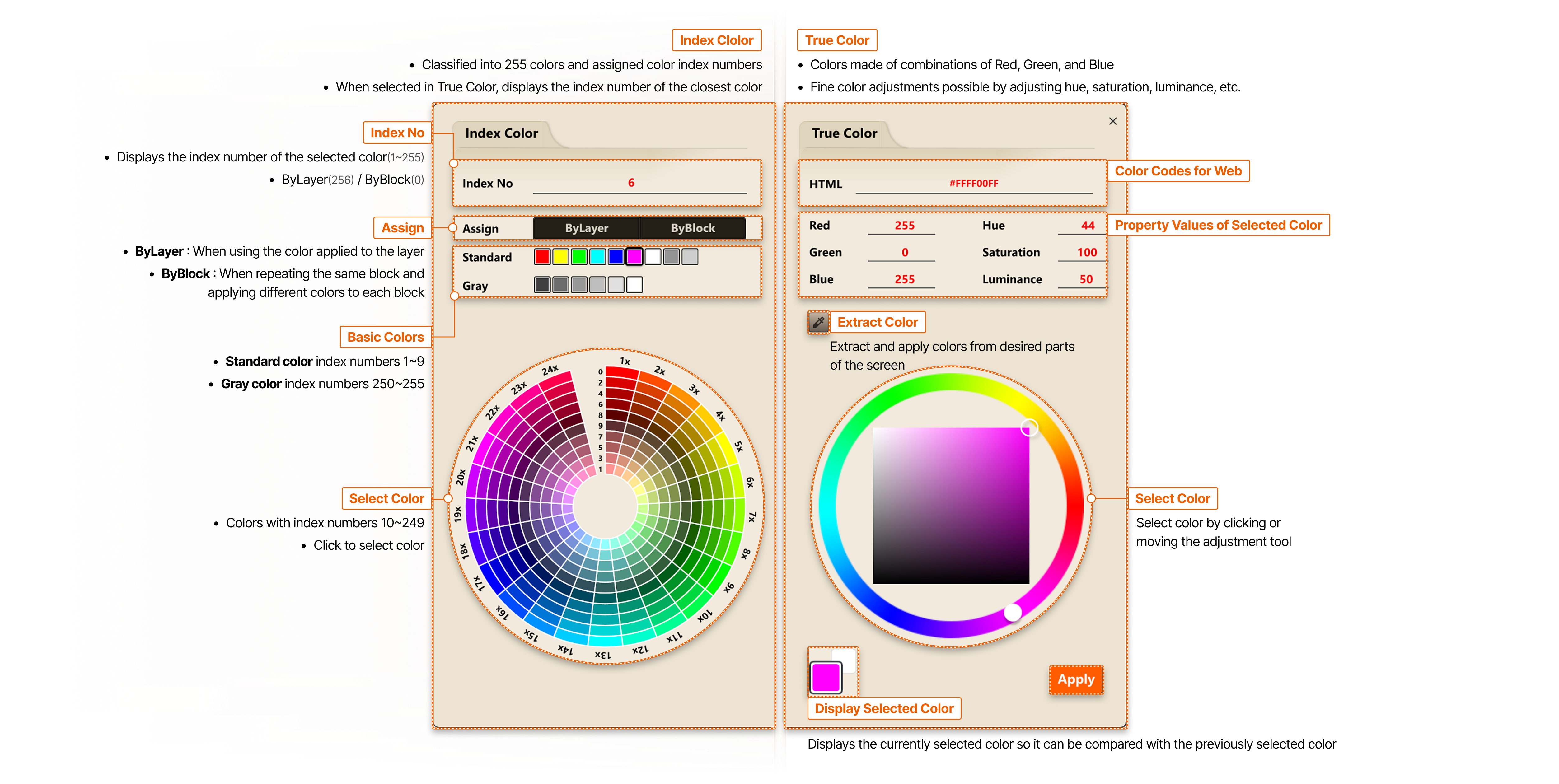

Select a color to apply and check the property values of the selected color
How to use
- Method 1
- Command Input Window > Command : COLOR
- Method 2
- Top Bar > Color > Color Edit
- Bar
- Major property information of the selected object is displayed and can be modified
- Popup
- Quick Select
- Filter selected objects by conditions to select only desired objects
- Basic Info
- Basic properties shared by all objects
- Shape Info
- Displays shape information such as size, area, length, and angle according to the type of selected object
- Geometry
- Displays coordinate information such as start/end points and vertices according to the type of selected object
- Multi-Selection
- When multiple objects of the same type are selected, displays the object count
- When multiple objects of different types are selected, displays as a list * When multiple objects of different types are selected
